Description

IWSA Rules Compliant and IWSA registered for 2025 races

Program

The V3 race mast, with outstanding glide and perfect control.

Presentation

The 107 cm HM carbon mast is a masterpiece of technological expertise. Glide, rigidity, lightness, and precision: this is the benchmark mast for riders seeking top-level performance in racing.

With its 107 cm, this mast is the largest size available in the V3 fuselage range. Fully dedicated to racing, it provides outstanding performance while maintaining flawless control.

Although less maneuverable than the 100 cm, it is fully compatible with all V3 components, making it an essential choice for competitors or freerace aficionados. It proves to be the ideal tool for achieving high speeds and maintaining flawless stability in the most demanding conditions.

The High Modulus Prepreg Carbon construction boosts the fiber content in the composite. With more carbon and less resin, it becomes incredibly rigid and responsive.

Along with the material work, their application is carefully designed and calculated. The flex and twist are fully controlled by optimizing the orientation of the carbon fiber layers. Additionally, the high-density core of the internal structure is strengthened with a 50-layer carbon double stringer.

As a result, we achieve powerful dynamics even with thinner thicknesses and more fluid profiles than structural ones.

With a thickness of 13.5 mm, this mast offers exceptional hydrodynamics. Its slim profile minimizes drag, enabling impressive speeds while maintaining optimal stability. Perfect for front wings under 100 cm, it’s tailored for riders aiming for pure performance with fast and reactive small wings.

In kitefoil, this mast stands out for its ability to sustain high speeds, even in tricky conditions, while providing excellent maneuverability for long, fast tacks and technical transitions.

For wingfoil, the 107 cm length is ideal for freerace and race riders wanting to push the boundaries with perfect control. It keeps you above the chop, providing exceptional stability and giving you the confidence to perform jibes and tacks at full speed with no compromises.

With 10 years of mass-producing foils, GONG has been the global leader in this sport, delivering nearly 100,000 foils. This tenth year, incredibly intense in R&D, has enabled us to offer even thinner masts in the V3 foil range.
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
Preorder V3

Foil Carbon Mast HM 107 cm V3

The 107 cm race mast, fast and rigid, made of high-modulus carbon.
See Description
Regular Price 1199€
Sale Price 1199€Regular Price
107 cm
Foil Mast Cover
107 cm
Available on
Carbon
Foil Top Plate Cover
Carbon
Available on
Titanium / V3 Front wing - V3 Stab
Foil Fuselage V3
Titanium / V3 Front wing - V3 Stab
Available on
            -2
            -15
The product will be available from
ref : GON25FOISPPMASCHM12K-10713
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
GONG | Foil Carbon Mast HM 107 cm V3
Description

IWSA Rules Compliant and IWSA registered for 2025 races

Program

The V3 race mast, with outstanding glide and perfect control.

Presentation

The 107 cm HM carbon mast is a masterpiece of technological expertise. Glide, rigidity, lightness, and precision: this is the benchmark mast for riders seeking top-level performance in racing.

With its 107 cm, this mast is the largest size available in the V3 fuselage range. Fully dedicated to racing, it provides outstanding performance while maintaining flawless control.

Although less maneuverable than the 100 cm, it is fully compatible with all V3 components, making it an essential choice for competitors or freerace aficionados. It proves to be the ideal tool for achieving high speeds and maintaining flawless stability in the most demanding conditions.

The High Modulus Prepreg Carbon construction boosts the fiber content in the composite. With more carbon and less resin, it becomes incredibly rigid and responsive.

Along with the material work, their application is carefully designed and calculated. The flex and twist are fully controlled by optimizing the orientation of the carbon fiber layers. Additionally, the high-density core of the internal structure is strengthened with a 50-layer carbon double stringer.

As a result, we achieve powerful dynamics even with thinner thicknesses and more fluid profiles than structural ones.

With a thickness of 13.5 mm, this mast offers exceptional hydrodynamics. Its slim profile minimizes drag, enabling impressive speeds while maintaining optimal stability. Perfect for front wings under 100 cm, it’s tailored for riders aiming for pure performance with fast and reactive small wings.

In kitefoil, this mast stands out for its ability to sustain high speeds, even in tricky conditions, while providing excellent maneuverability for long, fast tacks and technical transitions.

For wingfoil, the 107 cm length is ideal for freerace and race riders wanting to push the boundaries with perfect control. It keeps you above the chop, providing exceptional stability and giving you the confidence to perform jibes and tacks at full speed with no compromises.

With 10 years of mass-producing foils, GONG has been the global leader in this sport, delivering nearly 100,000 foils. This tenth year, incredibly intense in R&D, has enabled us to offer even thinner masts in the V3 foil range.




Shape
PERFECT LENGTH FOR RACE

The 107 cm length is ideal for top-level racing and slalom. You can perform strong counter-heel and go full speed without flinching.


CONSISTENT THINNER THICKNESS

The mast geometry is designed to deliver maximum glide and stability on all water conditions. The lower half of the mast has a thickness of 13.5 mm with a consistent profile. This allows for superior glide with no flexibility or twist. The upper part is designed to reinforce the mast's rigidity. Even with its large length and thin profile, this mast maintains exceptional stiffness, giving you full control.

INTEGRATED RAKE PLATE

The 1.5° rake integrated into the plate raises the nose of the board.  The higher front foot position offers comfort at high speeds and tolerance during touchdowns. This design allows you to push harder with the front foot for increased acceleration.



A more efficient foil shape

One of the key elements in the evolution of this range is the complete redesign of our foils to increase their structural and hydrodynamic qualities.

The V3 fuselage is:

  • faster
  • more rigid
  • more resistant
  • lighter

The new round shape allows a 12% gain in glide and the thicker section approaching the stab increases the strength and rigidity of the foil.

Hours of calculations on extremely powerful computers have allowed us to optimize the smallest detail to maximize performance. The fillets of all our connections have been carefully studied and adjusted to minimize hydrodynamic disturbances and increase the rigidity and resistance of the assembly.


Carbon HM

The TORAY M40J High Modulus carbon used on our Team Series range offers incredible rigidity. It is a high-end carbon that delivers high mechanical properties while remaining resistant. A carbon used in aeronautics as well as for high-end sports equipment.

Its mechanical characteristics, such as its superior tensile strength and Young's modulus, allow for exceptional performance on the water.

Your equipment is rigid, responsive, and extremely stable.


Retro fitting

The entire range, from the fuselage, to the mast, to the front wing and the stab, has been revised to radically boost the performance of our foils, without being limited by our old connection shapes.

However, this choice to change all of our parts could not be considered without continuing to offer compatibility with our old ranges.

We therefore offer a wide choice of fuselages which gives you the freedom to mix all our masts, front wings and stabs, whatever their generation.


Carbon HM Mast Technology

High Module Carbon offers unparalleled rigidity, representing the pinnacle of performance in our most advanced wings and masts, which face the most demanding structural constraints.

Made entirely of High-Modulus carbon, this construction is all about performance. Its exceptional fiber properties enable us to design daring and technically sophisticated shapes.

The products have no flex, the fibers are oriented along multiple axes to lock in bending and torsion, ensuring maximum responsiveness.

Thanks to pre-impregnated fibers, we can guarantee optimal resin usage, providing perfect cohesion at the lightest possible weight.

Each layer of carbon is carefully hand-assembled around a high-density hydrophobic foam core, in a steel mold. A central stiffener is integrated to increase rigidity without compromising on lightness.

The mold is then subjected to high pressure and heated to 150°C to solidify the carbon. The foam core, seeking to expand under the heat, ensures even compression between the carbon layers, ensuring a strong and durable structure.

Durability and repairability are at the heart of our development philosophy. Our foils are tested and proven by dozens of team riders, hundreds of employees, and thousands of customers worldwide. Even in case of damage, our products can be repaired multiple times, ensuring exceptional longevity.


Technical sheet

Foil Carbon Mast HM 107 cm V3 Carbon HM / 107 | 13 mm

Download the user guide

Buying guide

For whom?

For those who want the best.

These masts are not only for experts. A rider in progress will value the benefits of these masts, which provide flawless control of the foil.;

Of course, HM masts become essential as the rider's demands for foil performance grow.

For what?

The 107 cm length makes it ideal for wing racing and full-speed kiteboarding, providing the best capacity to increase leaning angle without ventilating the tips, retain control during maneuvers, handle chop, and handle the opposing angle at high speed.


Equipments

The mast comes with all the necessary hardware to mount it on the lower and board:

  • 4 M6 brass square nuts
  • 4 M6 bowl washer
  • 7 M6x30mm screws

Delivery

Delivery delay

We indicate a preparation and shipping time of 3 working days. In reality, the majority of orders are shipped within 24/48 hours.

The delivery time, i.e. delivery time of the package to your home, then depends on the delivery location and the carrier.

We work with reliable and efficient carriers. 99% of shipments go perfectly and quickly. In the case of the remaining 1%, rest assured that we will do what is necessary with the carrier.

Shipping fees

Unlike other sites, shipping costs are not hidden behind the price of our products. You know exactly what shipping costs you, and you are not disadvantaged if you choose to collect your order at our GONG Space Center.

Shipping costs are calculated based on the weight and volume of each package, and your delivery address.

Tracking your package

Delivery tracking is managed directly by the carriers to whom we have entrusted your packages. They will contact you by email or SMS to allow you to choose delivery methods and follow the route of your package.

Carriers

We work with the best transport societies to deliver to you throughout Europe and the world within very short deadlines. We chose them for their quality of service and their compliance with deadlines.

For mainland France, 80% of your orders arrive at their destination in less than 48 hours of processing.

For Europe, delivery times vary from 3 to 6 working days, depending on the country of destination.

For the rest of the world, delivery times depend on transit time and customs clearance time. This delay depends on customs and can last from a few days to a few weeks depending on the destination and seasonality.

Please note, transport time is added to preparation/shipping time. Two companies collaborate on your order (GONG and the carrier). Each one masters its activity and is committed to optimizing its deadlines so that you are delivered as quickly as possible and at a reasonable price.

Eco-responsible packaging

Preserving the environment is an absolute priority. This is why we do everything possible to reduce our ecological footprint.

The most important thing is to sell quality, durable products that will be repairable and will please you for a long time.

For our shipments, we use:

Scotch craft paper.

Final packaging in high-end cardboard.

For rigid boards: Flexi-Hex, very high resistance ecological packaging.

This means:

Reusable and recyclable packaging.

An almost total reduction in single-use plastic.

Maximum protection and impact resistance for rigid boards thanks to the innovative Flexi-Hex honeycomb design (35mm thick).


Receipt of your product

Upon delivery, check the condition of your package in the presence of the carrier. A complete explanation email on the procedure to follow will be sent to you when your order is shipped.

Despite our requirements and all the care we take in the packaging and protection of your product, transport hazards may occur, and your product may suffer more or less significant transport damage.

Note that the products are protected in their carton. If you have any doubts, simply refuse delivery and contact us.
heart heart-full
GONG | Foil Mast CoverGONG | Foil Mast Cover
70 cm 77 cm 79 cm 85 cm 92 cm 100 cm 107 cm 109 cm
heart heart-full

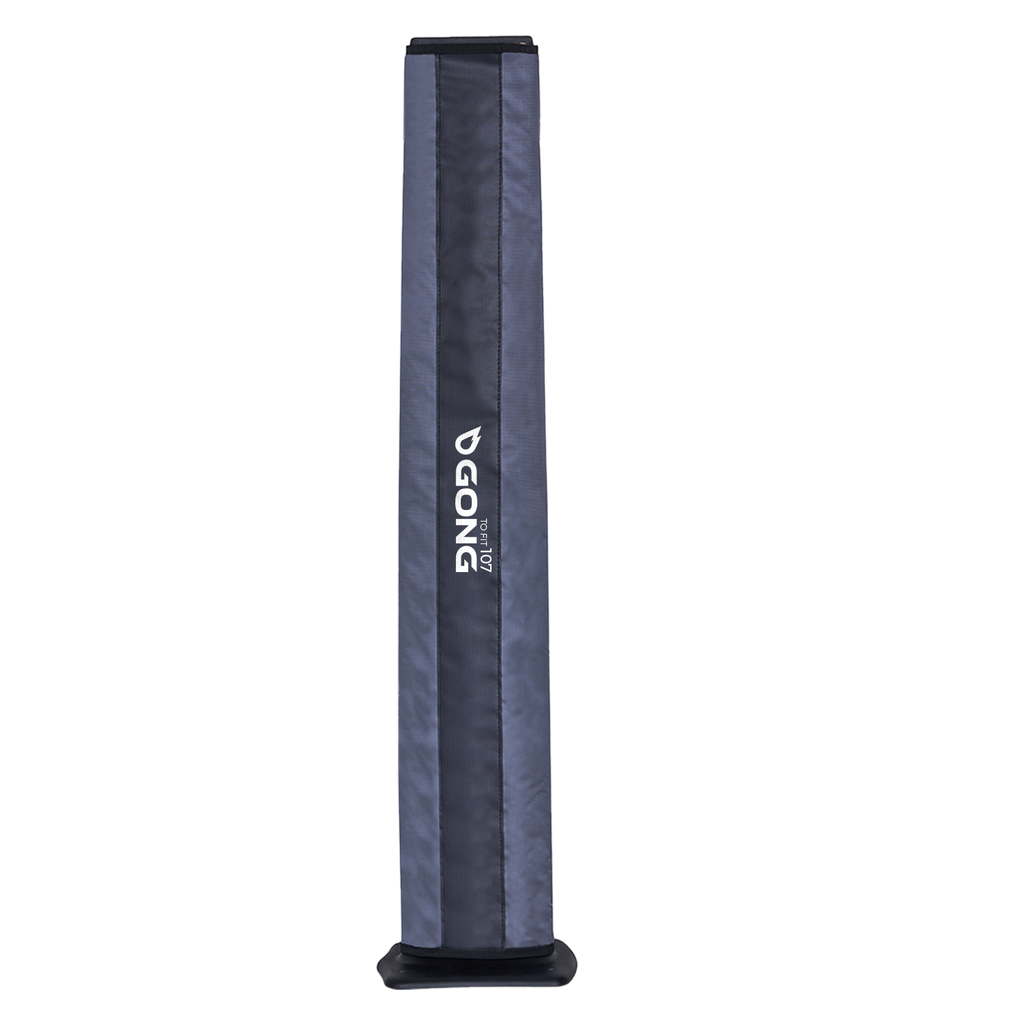

Foil Mast Cover
