Description

PROGRAM

The high-performance front wing to shred with lots of speed and commitment.

PRESENTATION

The Fluid H FG is a high-performance wing to radicalize your sessions.

The thing we love about the Fluid H is that it performs on all fronts: it takes off early, it goes fast, it has incredible rail to rail, high top speed, powerful pop and magical glide when surfing.

It is the perfect front wing for those who want to step things up, on all fronts.

In surfing, it's the FW capable of cutting turns short, going for snappy top turns, but also drawing wider lines without losing lift. This extreme versatility is a treat. You always have the impression of having room left for more commitment, even though it remains super simple.

And it's just as great in a straight line or when pumping. you have an ultra healthy foil under your feet, lifty but fast, which just needs to be pushed and challenged. Gaining confidence and serenity is the key to radicality for those who want to make strong progress.

Combined with our new self-tightening interlocking system and our round V3 fuselage, the gain is absolutely crazy.

In its Fiber Glass version, this shape offers all its benefits in a budget-friendly technology.

Boost your carves, your moves and your speed with this foil capable of everything.

V3

Foil Front Wing Fluid H V3 FG

The front wing for responsiveness, flow, and speed.
See Description
Regular Price 229€
Sale Price 229€Regular Price
Taille XS
80
Foil Cover Front Wing R
80
XS
GONG Foil Stab Fluid H V3 FG
XS
Aluminium / V3 Front wing - V3 Stab
Foil Fuselage V3
Aluminium / V3 Front wing - V3 Stab
            25
            -99999

ref : GON25FOISPPFROFLHBLA-077
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG
GONG | Foil Front Wing Fluid H V3 FG

Specifications

  • Front wing span: 77.0cm
  • Front wing surface: 710.0cm2
  • Front wing chord: 11.7cm
  • Front wing aspect ratio: 8.4
  • Front wing thickness: 12.3mm

Aptitudes

Lift
Speed
Carving
Glide
Pumping
Pop

Program

In action
Description

PROGRAM

The high-performance front wing to shred with lots of speed and commitment.

PRESENTATION

The Fluid H FG is a high-performance wing to radicalize your sessions.

The thing we love about the Fluid H is that it performs on all fronts: it takes off early, it goes fast, it has incredible rail to rail, high top speed, powerful pop and magical glide when surfing.

It is the perfect front wing for those who want to step things up, on all fronts.

In surfing, it's the FW capable of cutting turns short, going for snappy top turns, but also drawing wider lines without losing lift. This extreme versatility is a treat. You always have the impression of having room left for more commitment, even though it remains super simple.

And it's just as great in a straight line or when pumping. you have an ultra healthy foil under your feet, lifty but fast, which just needs to be pushed and challenged. Gaining confidence and serenity is the key to radicality for those who want to make strong progress.

Combined with our new self-tightening interlocking system and our round V3 fuselage, the gain is absolutely crazy.

In its Fiber Glass version, this shape offers all its benefits in a budget-friendly technology.

Boost your carves, your moves and your speed with this foil capable of everything.

GONG | Foil Front Wing Fluid H V3 FG
Shape

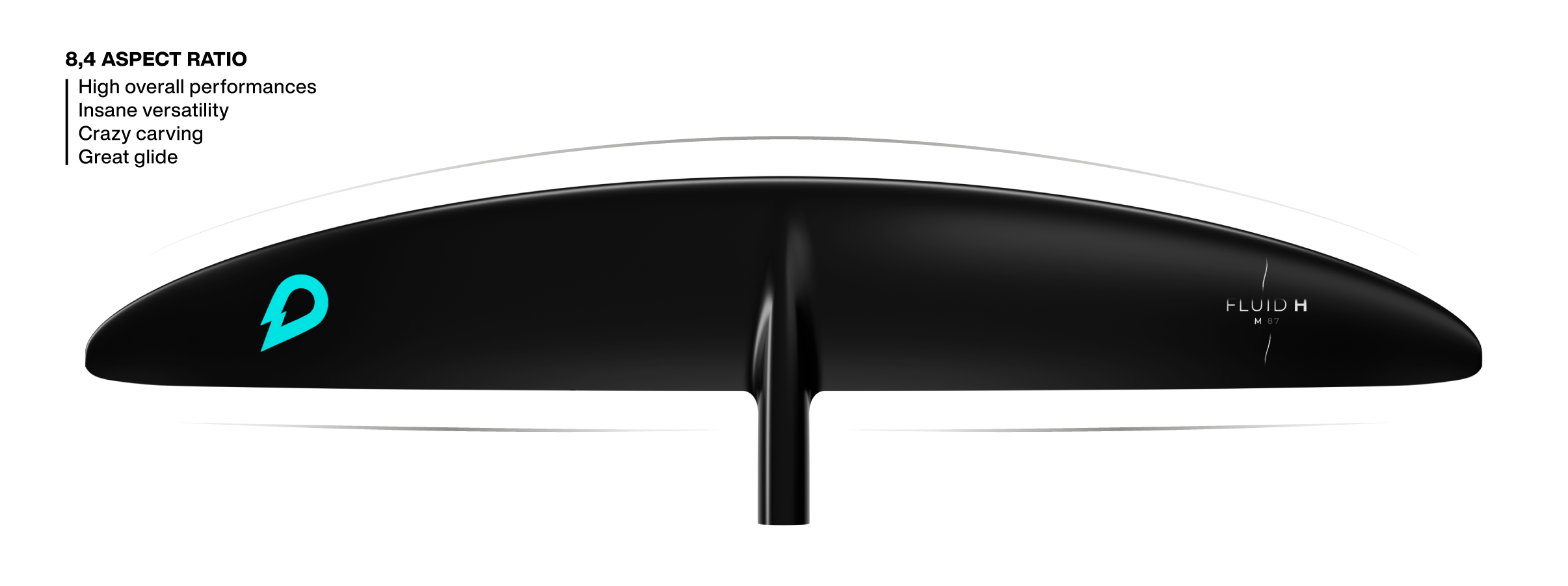

OUTLINE

The Fluid H FG has an aspect ratio of 8.4 which translates into great versatility. This foil has huge potential whatever foiling disciplines you’re into, thanks to its maneuverability, advanced glide and high maximum speed to score in all conditions.

Its elliptical outline gives it a very playful character by centering its lift, which has the effect of freeing its tips while maximizing hydrodynamic performance across its entire wingspan. Glide and lift are maximized.

The advanced tips project the center of lift of the wing forward to increase the leverage of the stab. This way we can reduce the stab surface and gain acceleration and speed.

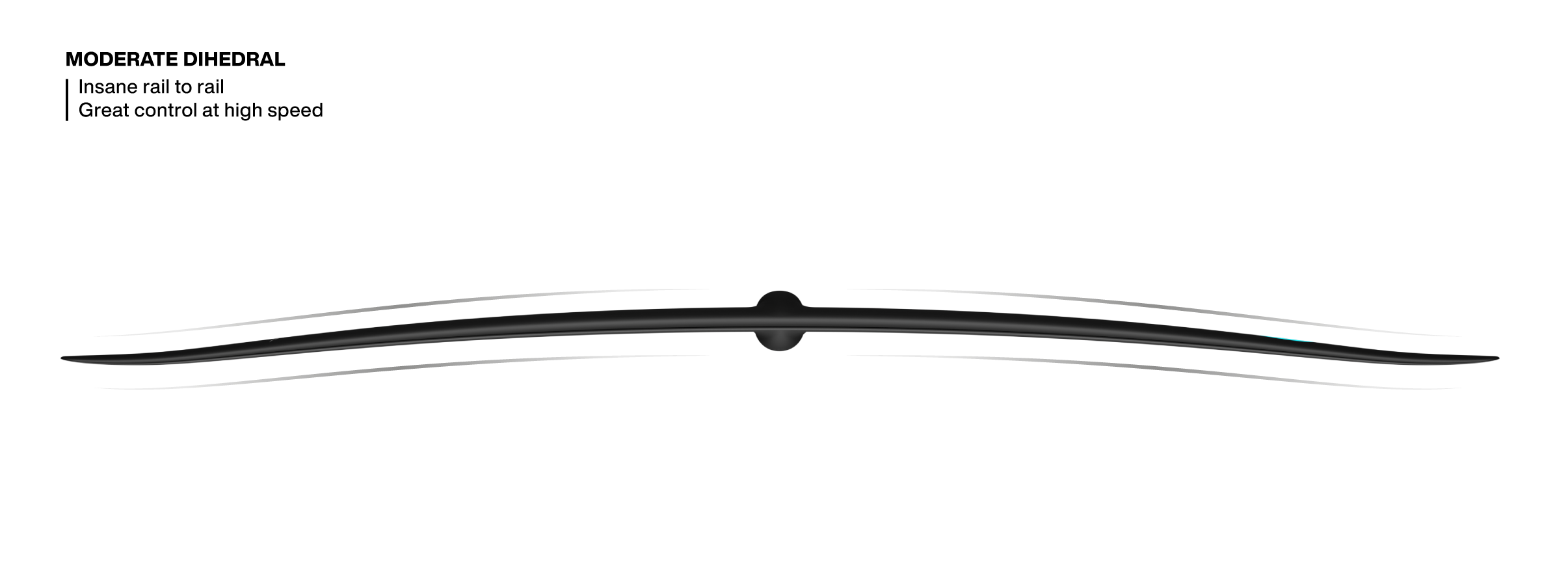

DIHEDRAL

The Fluid H FG's dihedral is moderate to find the best compromise between reactivity, stability and glide.

The tips are thus easy to engage into your carve, they do not breach and control of the wing is total even in the most radical turning angles.

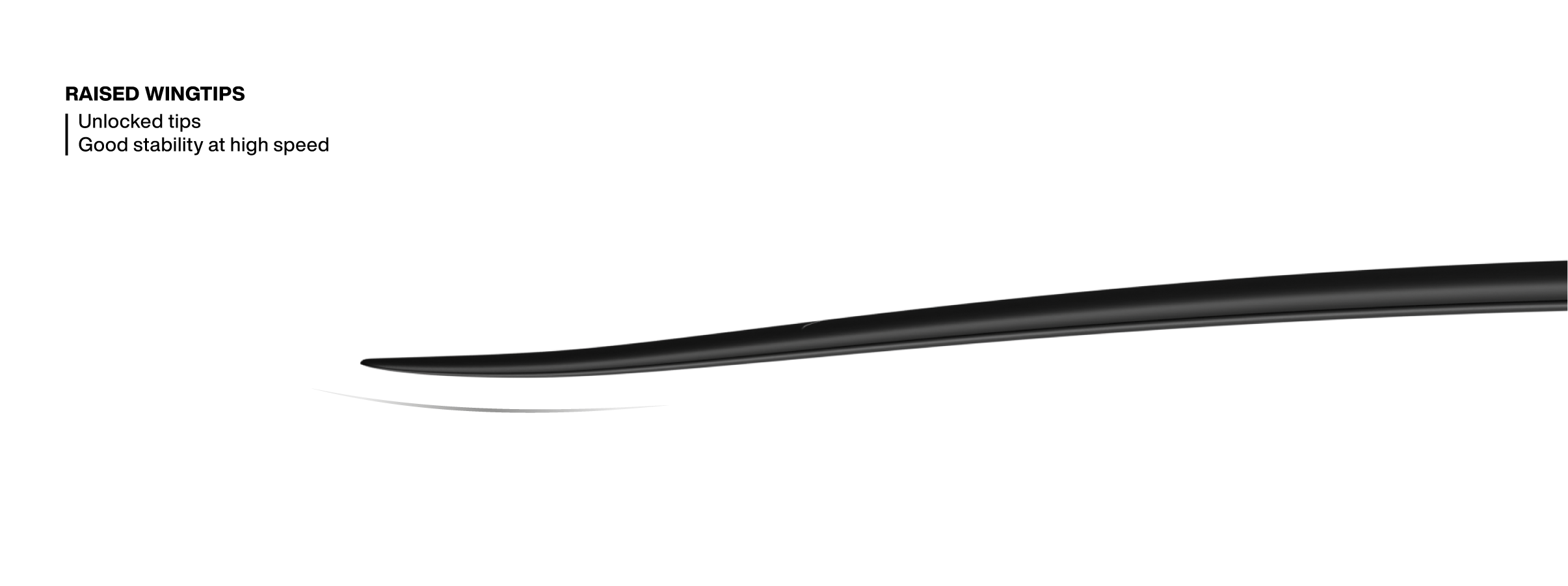

SLIGHTLY RAISED TIPS

The raised tips accentuate the maneuverability of the wing by making it easier to pivot on all axes.

Very reassuring in snaps or crazy drifts, they give this front wing the necessary forgiveness for a radical drive.

This design also reduces wear on the tips when riding close to the beach ;-)

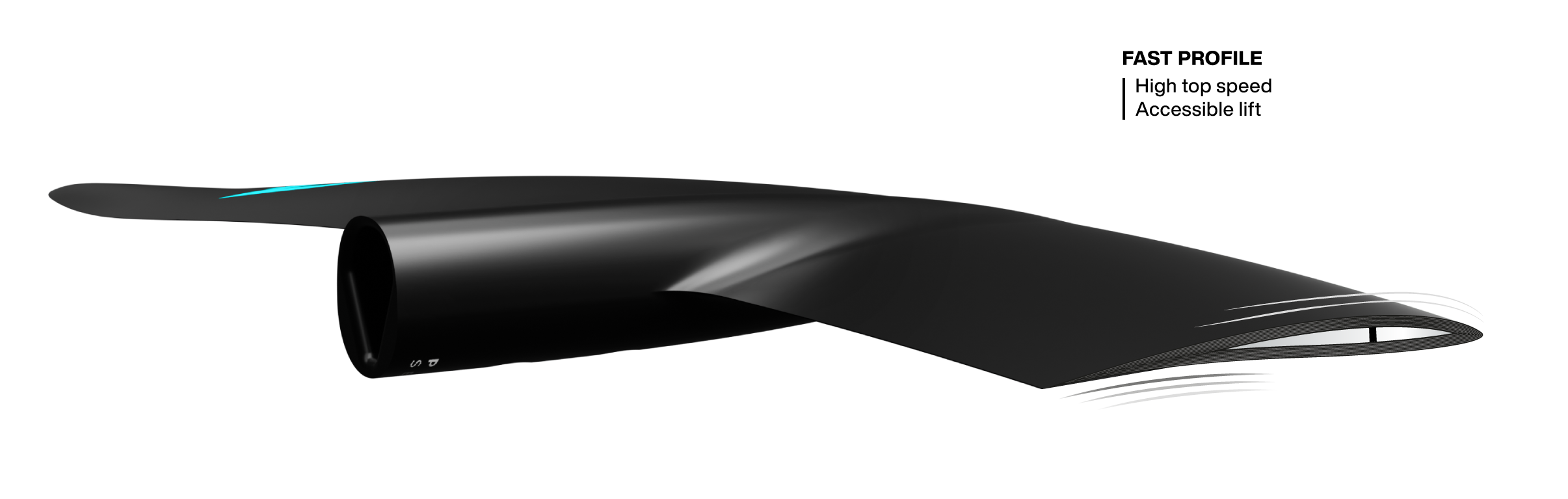

FAST PROFILE

The Fluid H FG’s profile has been designed to maximize its potential from the mid to high range of speeds. This profile is forgiving to stalling, which makes it lifty and efficient at the lower speeds.

This profile converts your pumping efforts in a fast and unbridled glide because the slightest pumping stroke pulls you forward.


FIXED SETTINGS

The settings of the foil on your board is identical to the previous version and all the GONG foils. This balance of forces is precisely calculated to guarantee you a constant feeling, especially when you move from one FW to another in a session.

FRONT WING FG TECHNOLOGY

Introducing the FG technology of the Perf Series foils, a state-of-the-art combination of high-quality Biaxial Prepreg fiberglass and a high-density hydrophobic foam core. The outcome: a rigid, forgiving, and incredibly durable structure, ideal for solid and accessible performance.

Engineered in 3D and digitally optimized, each foil is crafted with extreme precision using hydrodynamic and mechanical simulations. Tested by our Pro Team, this range is proven in real conditions to guarantee smooth performance.

Every stage of production is a work of engineering excellence: 5-axis CNC machining, vacuum compression, thermal molding at 150°C, and ultra-precise finishing. The multidirectional, pre-preg fibers ensure optimal flex and torsion control, offering managed rigidity and enhanced durability with a lightweight design.

Key benefits: waterproof foam, high-quality, resistant fibers, and a design intended to last and be repairable. The FG technology from the Perf Series, endorsed by riders worldwide, is your partner for smooth progression.

3D View

Evolution

Each front wing has evolved to further excel in their program. The wing presents improved performance on all fronts, without compromise.

Overall, the new H range has gained enormously in glide.

Foils take off much earlier. On average you can go for 200 cm2 less surface area than with the previous generation for equal lift. The stabs are also much smaller.

This gain in glide, and the resulting reduction in surface areas, therefore makes it possible to radically increase the top speed and the average speed: by downsizing you generate less drag, and more speed.

The new profile, constant across the entire wingspan, makes it very forgiving in near stall situations and breaching. The foil holds very far at low speed. It’s stunning!

Forgiveness for breaching is unprecedented. You can fly close to the surface stress free: the foil remains super healthy to the point of not even feeling the breaches.

This consistency of the profile combined with an optimized composite layup gives even more rigidity to the foil, which allows for a steering that’s much more precise. The whole is really more rigid and more resistant to torsion.


A more efficient foil shape

One of the key elements in the evolution of this range is the complete redesign of our foils to increase their structural and hydrodynamic qualities.

The V3 fuselage is:

  • faster
  • more rigid
  • more resistant
  • lighter

The new round shape allows a 12% gain in glide and the thicker section approaching the stab increases the strength and rigidity of the foil.

Hours of calculations on extremely powerful computers have allowed us to optimize the smallest detail to maximize performance. The fillets of all our connections have been carefully studied and adjusted to minimize hydrodynamic disturbances and increase the rigidity and resistance of the assembly.


SuperLock self-tightening system

The SuperLock self-tightening front wing connection has been designed to guarantee perfect tightening even after hours long sessions.

The more pressure you put into the front wing, the tighter it fits into the fuselage.

The pressure angle makes it very easy to disassemble the front wing, even after long sessions.
This fitting only requires two screws under the FW, which makes changing the front wing easier and faster.

This tightening principle, already validated for several years on our V2 stabs, is now available in an optimized version on the front wings.

A real plus for daily use!


Retro fitting

The entire range, from the fuselage, to the mast, to the front wing and the stab, has been revised to radically boost the performance of our foils, without being limited by our old connection shapes.

However, this choice to change all of our parts could not be considered without continuing to offer compatibility with our old ranges.

We therefore offer a wide choice of fuselages which gives you the freedom to mix all our masts, front wings and stabs, whatever their generation.


Technical sheet

Foil Front Wing Fluid H V3 FG XS


Buying guide

For whom?

The Fluid H FG is the perfect foil for riders looking for an ultra maneuverable, versatile and fast front wing to excel in various disciplines.

This front wing doesn't require extreme skill, either technically or physically. Accessible for an experienced rider, it adds that little touch of spice that turns every carve into an amazing experience.

For what?

It’s a do-it-all high-performance foil. Its speed, maneuverability and glide make it the perfect wave riding machine.

Designed specifically for glide, this foil is not intended for jumps or extreme maneuvers. If you're looking to explore air freestyle, we recommend choosing the carbon models.

What size?

Less low end oriented than the Curve H FG, it nevertheless remains forgiving at low speed and accessible for takeoff. Compared to our previous Fluid H range, you can reduce the surface area of your front wing with no fear of a challenging take off or higher stall speed.

Some generalities on the choice of front wing sizes:

The preferred size will depend on your foiling discipline, your level, your weight, the conditions of your spot but also your board and your wing.

When pumping, you want as much surface as possible to be able to get going without the help of a wave or wind. By improving your technique and gaining more speed, you can reduce the surface area you need.

In surf/SUP foiling, the perfect surface area would be small enough to turn with ease but large enough to take off and pump comfortably.

In wing foiling, all sizes work. The heavier the rider and/or the lighter the wind, the larger the size. Conversely, riders who are lighter and comfortable with takeoff can look for smaller sizes.

When kite foiling, you want to avoid wingspans of more than 80 cm because the counter-heel is significant and the tips will easily breach the surface. Favor lower aspect ratio front wings to start because they provide a lot of lift for a limited wingspan.

For further details, check out this article.

If in doubt about which size to choose, contact our customer service.


What stab?

We recommend pairing a Fluid H stab with your Fluid H front wing, as these two components are designed for the same program and optimized to work in perfect harmony.

General information on the choice of stab sizes:

The preferred size will depend on your foiling discipline, your level, your weight, the conditions of your spot but also your front wing.

A larger stab will make take-off easier because the foil will generate a significant torque which will tend to give it a significant angle of attack. This also implies more front foot pressure.

A smaller stab will be more technical on takeoff but will boost speed and maneuverability. We also lose some front foot pressure, which means having to move the foil forward in the boxes to regain this stability.

Always adjust the size of the stab to the size of the front wing to obtain a balanced flight and functioning harmony between these two components.

For more details, check out the specific article.

If in doubt about which size to choose, contact our customer service.

Equipments

Front wing supplied with all the screws needed to fix it to the fuselage: 2 M6 x 25 mm screws.
