Screw Kit for Foil Allvator V1

Name: GONG - Screw Kit for Foil Allvator V1
Brand: GONG
SKU: GON0VISPACKFOILV1COMPLET-KIT
Price: 8.0 EUR
Availability: InStock
Rating: 4.7 (9 reviews)

The screw kit for assembling the Allvator V1 foil.

See Description

8€

Taille Unique

Unique

            1709
            -99999

  qc
  ps
  iq
  mq 1709

ref : GON0VISPACKFOILV1COMPLET-KIT

Direct sale from shaper to surfer

Pay in multiple installments

Quality boards conceived in France

Description

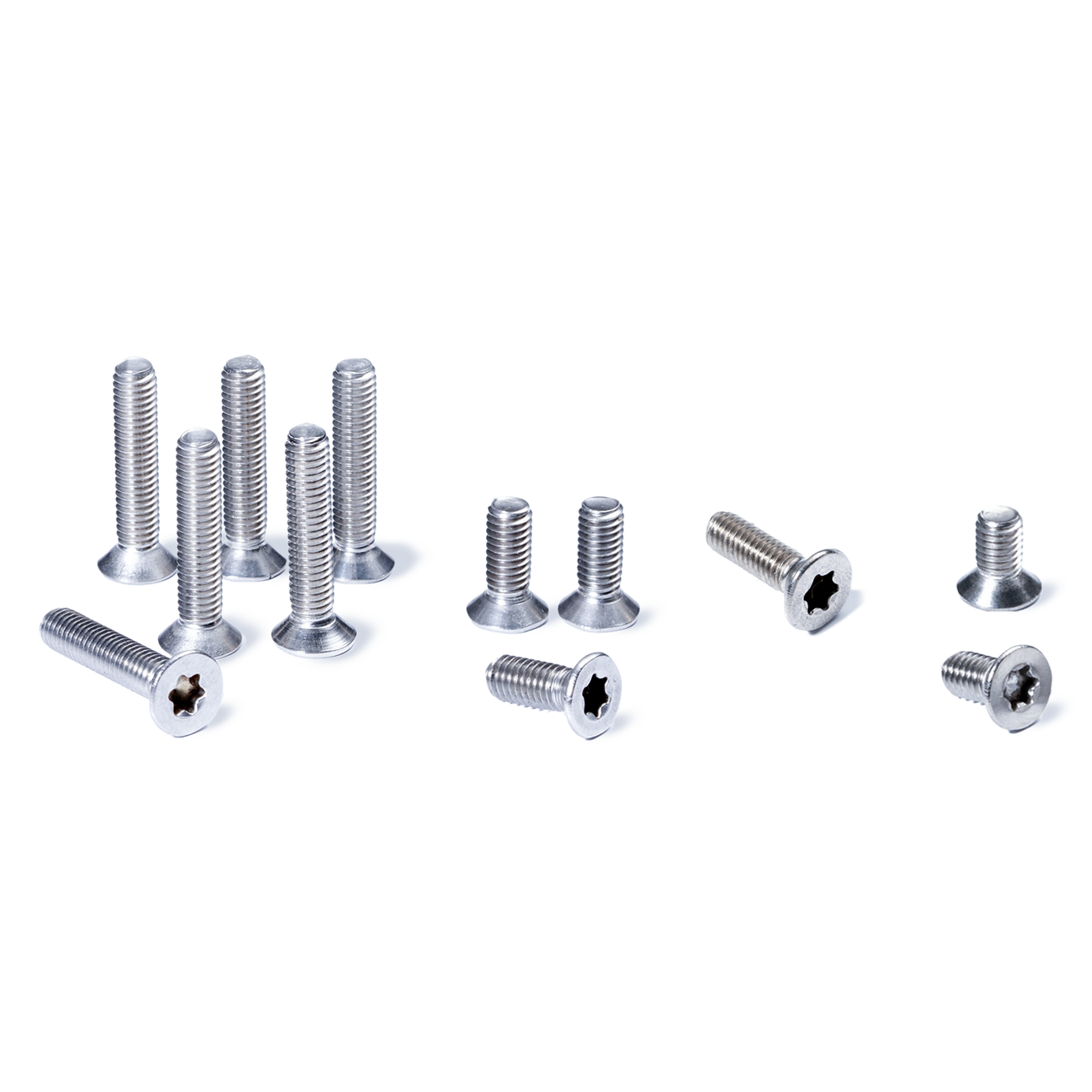

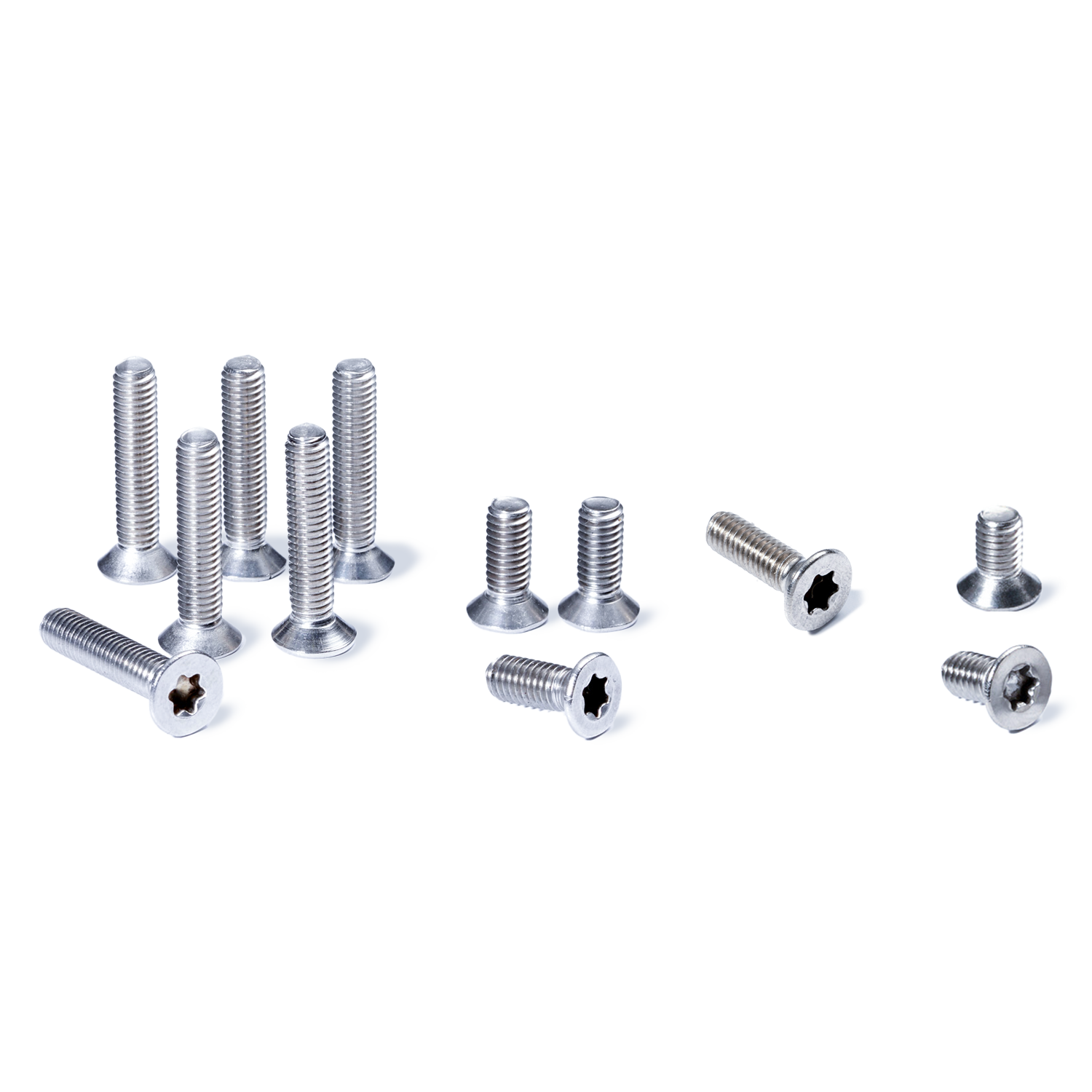

Complete pack of GONG Allvator foil Torx screws for a foil with a top plate V1.

Included in the pack:

3 Torx screw in A4 stainless steel hexagonal countersunk head M6 x 30mm: fixing the top plate to the mast.
3 Torx screw in A4 stainless steel countersunk hexagonal head M6 x 30mm: fixing the fuselage to the mast of the foil.
3 Torx screws in A4 stainless steel hexagonal countersunk head M6 x 16mm: attachment of the front wing and stabilizer to the fuselage of the lower foil.
1 Torx screws in A4 stainless steel hexagonal countersunk head M6 x 20mm: attachment of the front wing to the fuselage of the lower foil.
4 Torx screws in A4 stainless steel hexagonal countersunk head M6 x 12mm: attachment of the front wing and stabilizer to the fuselage of the upper foil.

The screws for fixing the top plate to the board are not included in this pack and must be ordered separately. You can add this option to your basket by ticking the box provided.
