V straps

The new range of wing and kite foil boards is equipped with a double V-strap for the front foot rather than an independent left and right strap. The advantage is having a more centered position on the board in a strap that will not move. It is no longer necessary to overlap two simple straps in the center of the board which allowed a satisfactory but not optimal binding.

The complete set supplied with the board consists of a V-shaped strap for the front position and a single strap for your rear foot with 5 fixing screws and 5 fixing plates, including a triangle-shaped fixing plate for the central point of the V-strap.

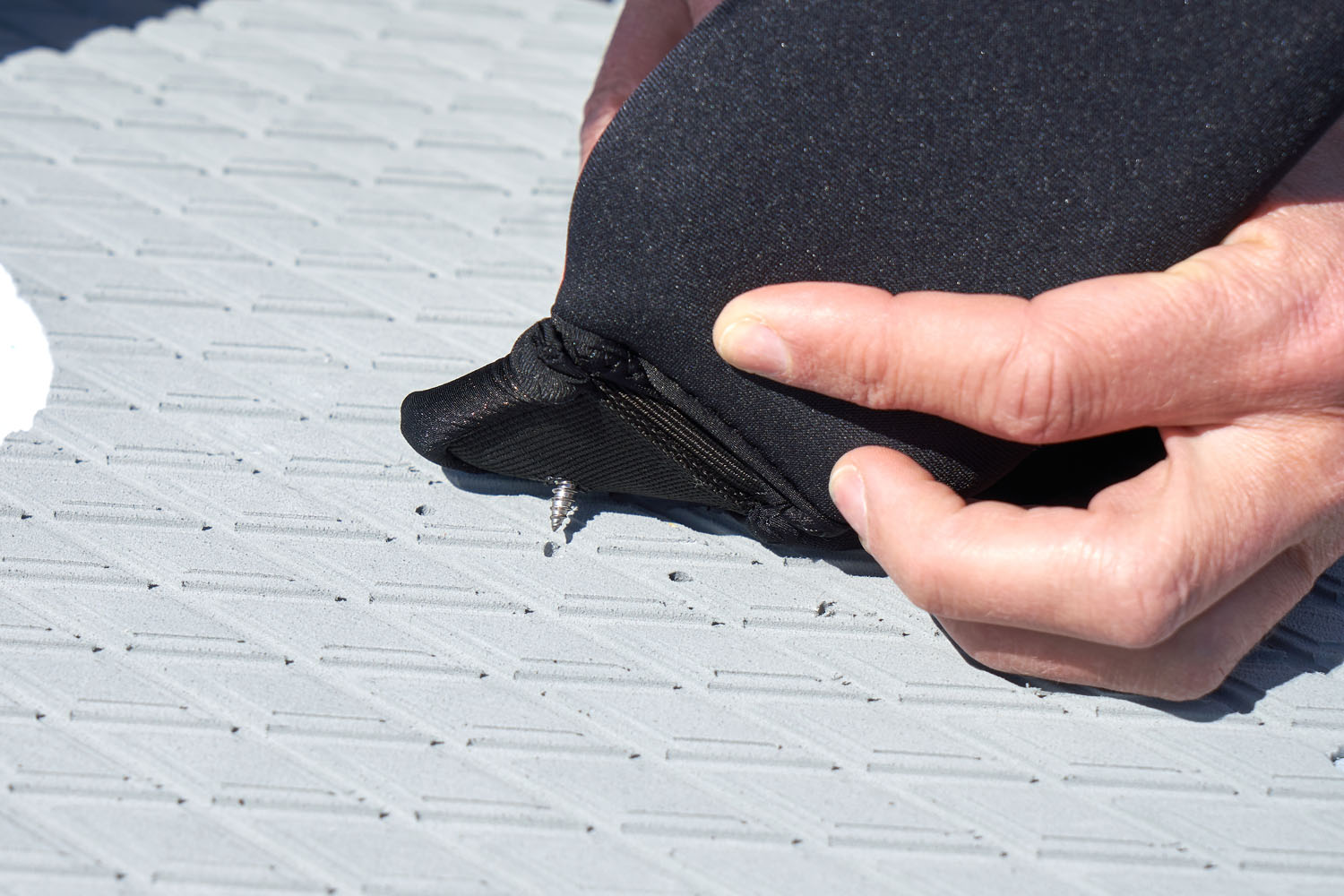

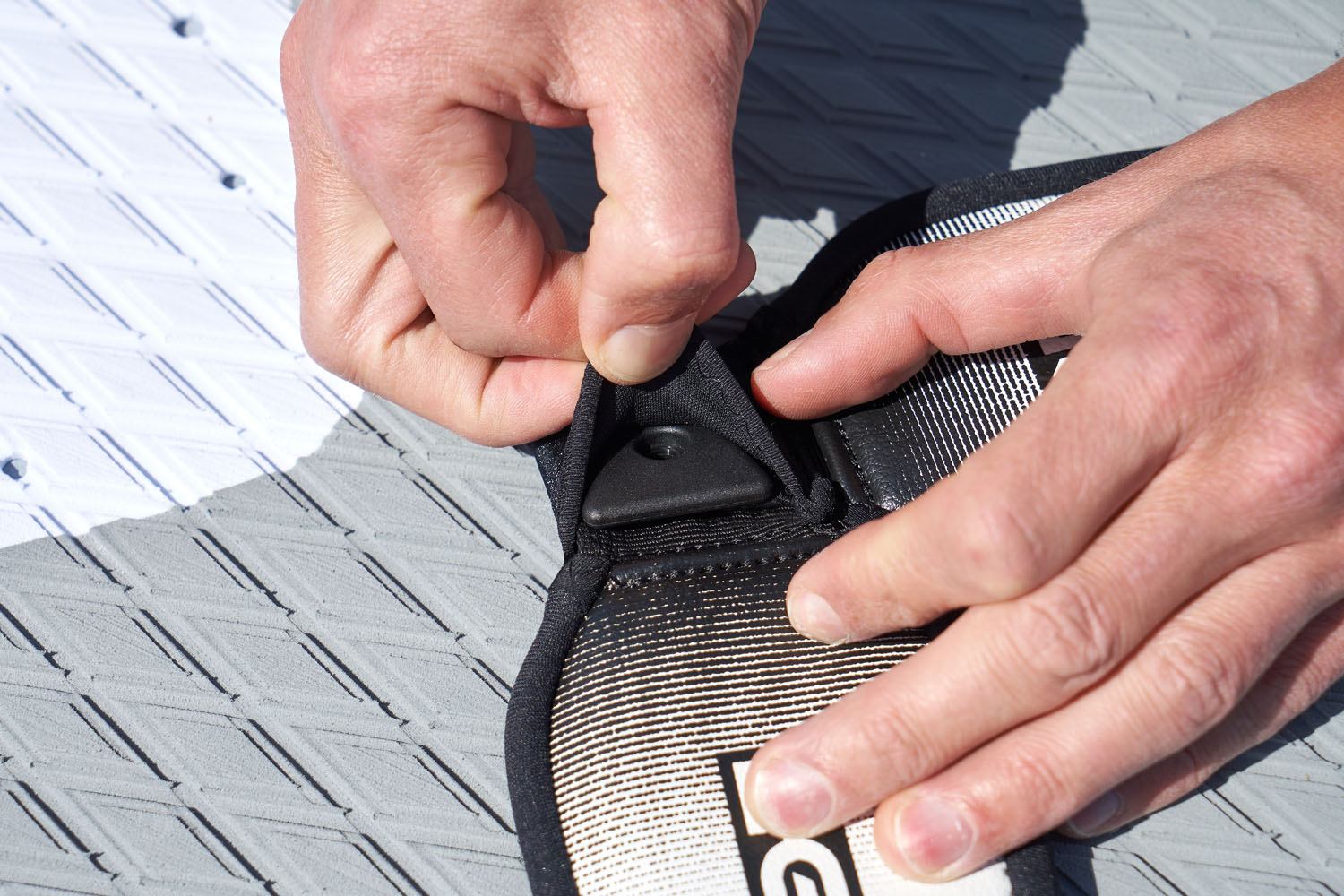

For the central fixation point of the V-shaped strap, lift the neoprene protection tab and insert the triangular fixing plate. The upper edge of the triangular fixing plate is placed parallel to the ridge of the right strap.

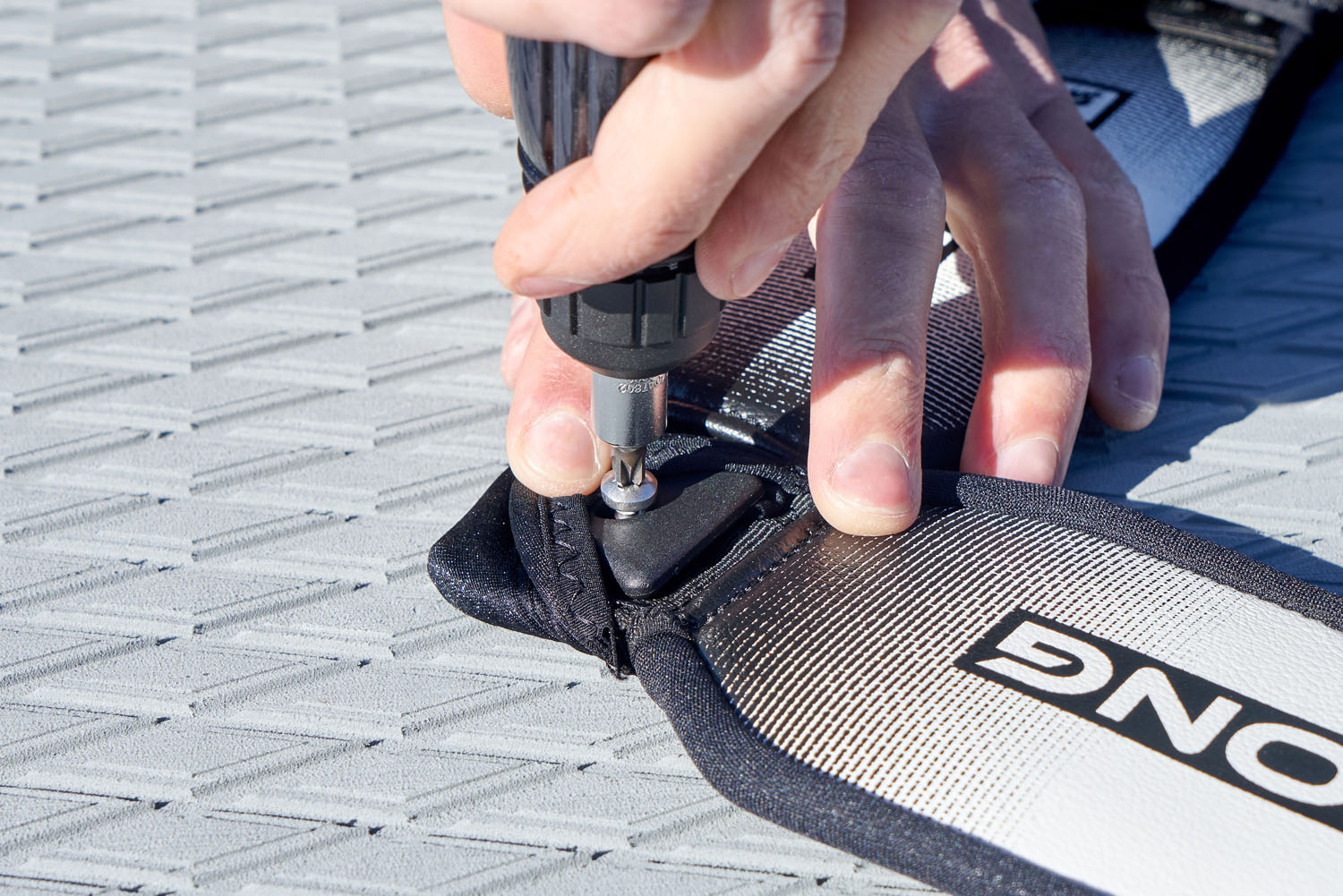

Then pass the screw through the plate and the central position hole of the strap and place the screw in front of the insert of your choice. The 5 positions available allow you to move forward or backward the position of your straps and therefore of your feet when sailing. It is with experience that you will be able to appreciate the position that is right for you. To start, choose the middle position.

When the screw is placed in the insert of your choice, hold the protective neoprene tab up and tighten the screw firmly but not excessively.

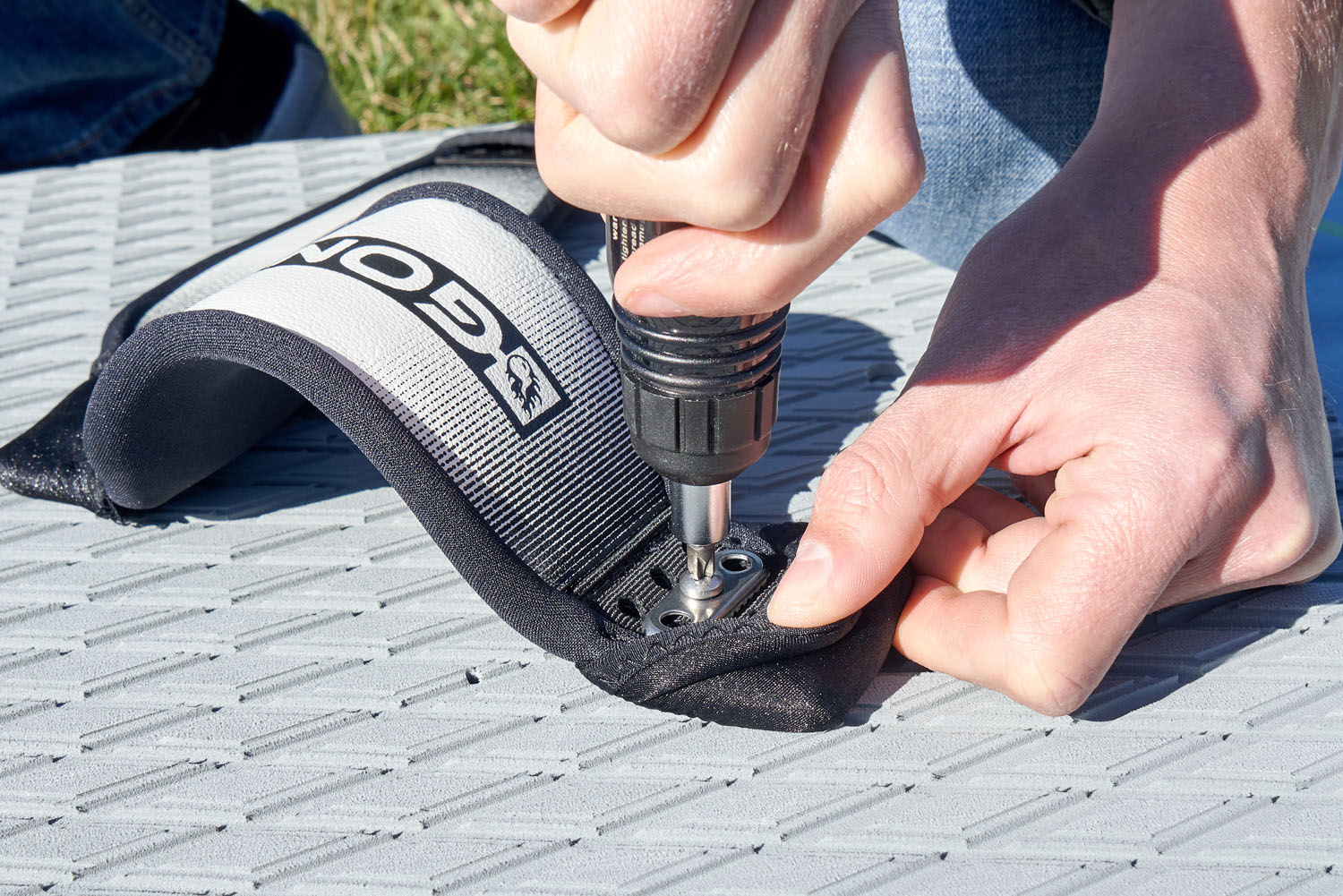

For fixing on the left and on the right, proceed in the same way, choosing the same position in the insert as that chosen for the central point. The one in the middle if it is the one chosen for the central point.

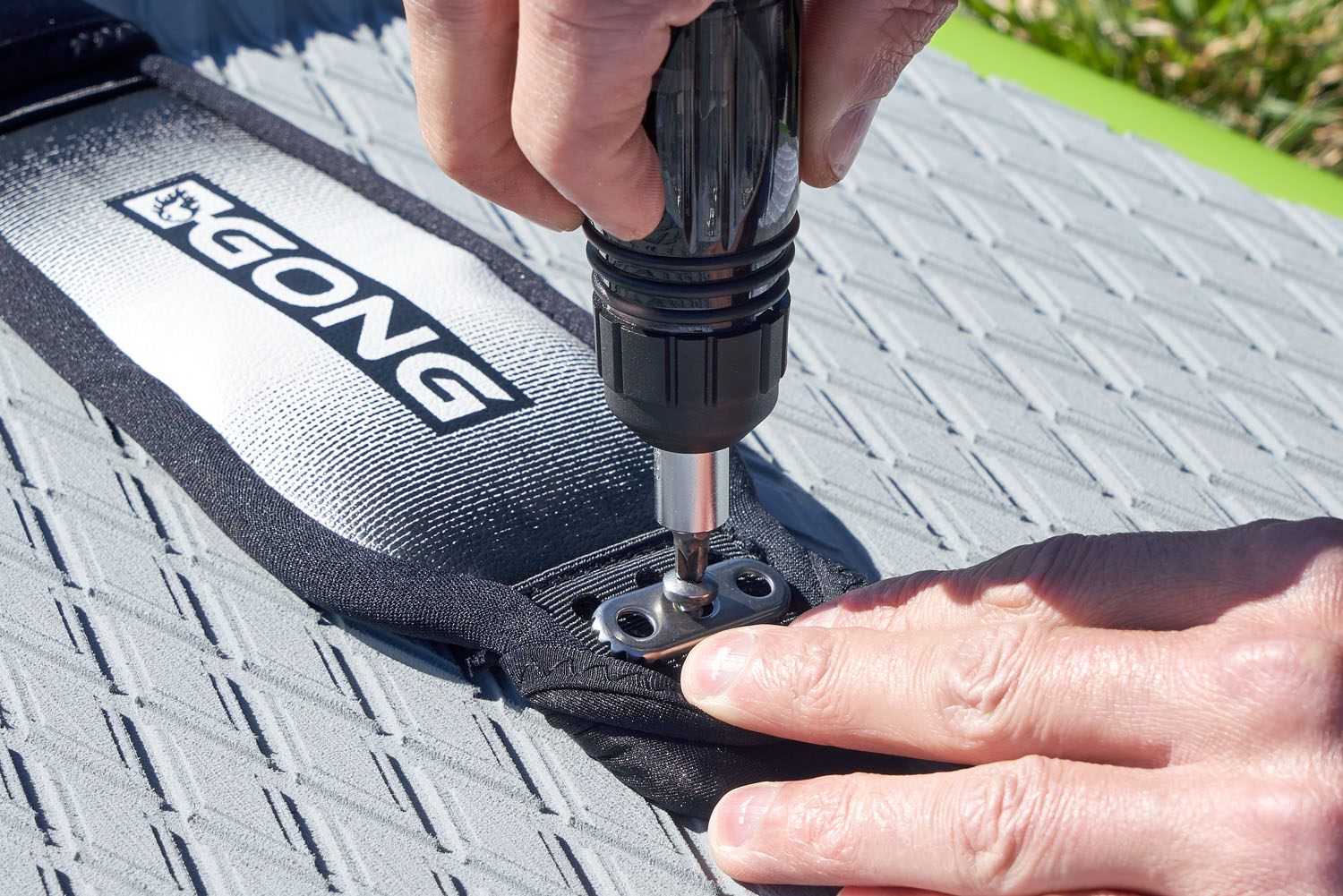

The operation is repeated for the rear strap in the position of your choice.
