Technos Kite Foil

Technos Kite Foil

ICS Technology - Pros

Inflatable Carbon Synthesis

The advantages of inflatable technology

  • Woven Dropstitch double-layer welded technology with double layer rails.
  • Recommended pressure: 15 psi.
  • Transportation: it fits into a bag.
  • Practicality: it inflates in 2 minutes.
  • Safety: the dropstitch absorbs shocks.
  • Aesthetic: the appearance is very pleasing.
  • Durability: highly resistant to rough handling.
  • Longevity: 100% repairable.

The performances of prepreg carbon and fiberglass

  • ICS Full composite prepreg plate, top of the line.
  • High-density foam stringers to limit flex and weight.
  • US rails machined directly into the carbon: incredible performance.
  • Unrivaled stiffness on the market.
  • Unparalleled dynamism and responsiveness.
  • A foil + inflatable combination without any loss of sensation.

An durable board

  • PVC reinforcement under the plate to preserve the board with an additional layer.
  • PVC reinforcement on the plate to protect the carbon and adhesive from heat, and distribute the efforts as far as possible on the plate to avoid detachment.
  • Double non-through brass inserts connected by a carbon fiber rod to easily screw the foil without risking piercing the board.
  • The large diameter leash ring is the strongest on the market. This is essential for wingfoil use.

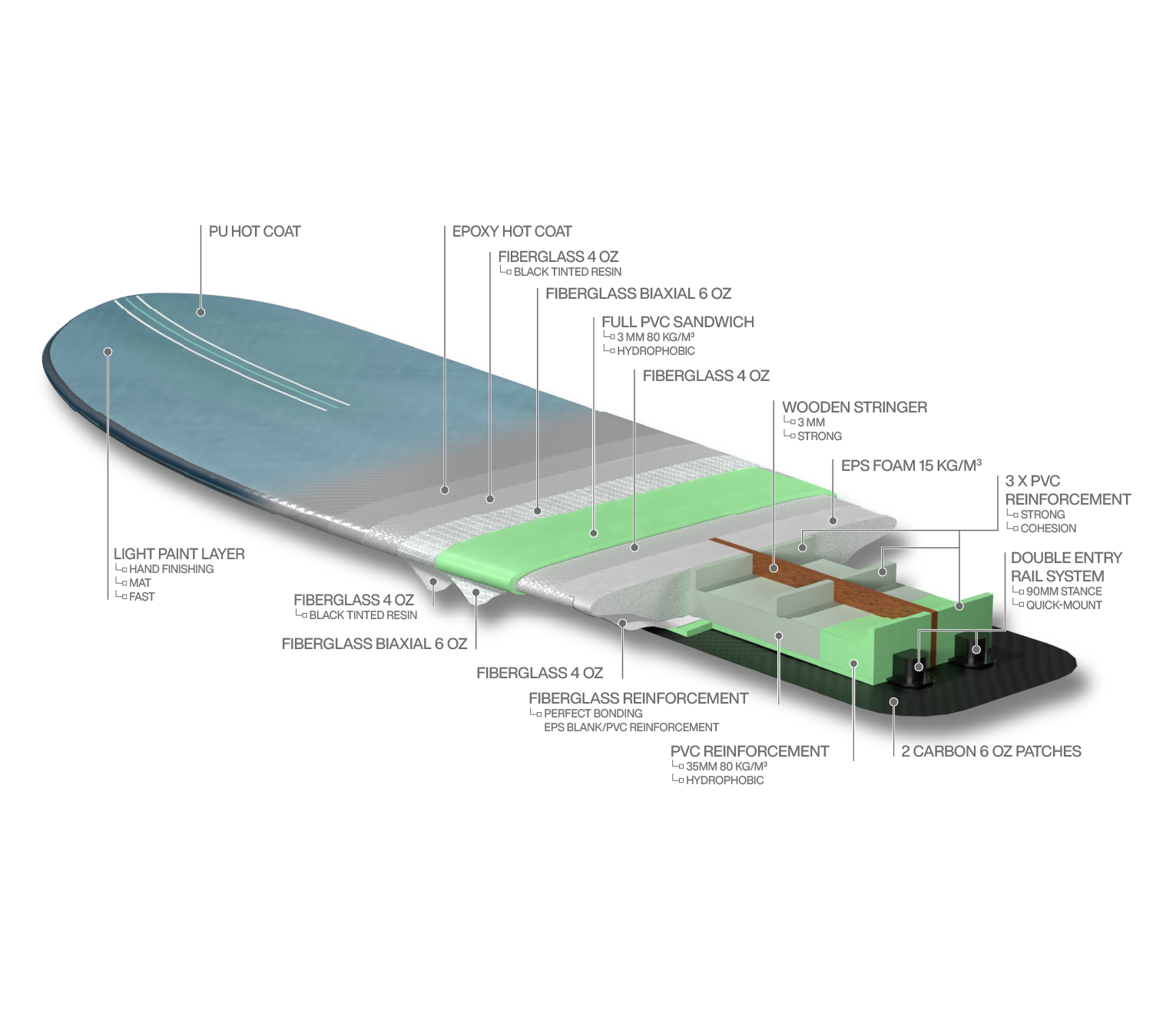

FSP 2X Technology

The FSP 2X technology is easily repairable when new in case of a ding. The PVC foam of the sandwich is waterproof and prevents water from entering on everyday shocks. The EPS foam blank does not deteriorate because it is really protected from water. And the repairs have a much larger support to stick on and blend seamlessly with the surrounding material.

This technology offers, at an affordable price, the incomparable strength/lightness/dynamism ratio of a full PVC vacuum sandwich.

  • 3D Shape on modeling software.
  • Preshape by numerical control for total reliability.
  • Shape control by traditional templates, finishing of the last mm 100% by hand.
  • 100% Epoxy board and EPS foam blank: solid and lightweight.
  • 3mm stringer to limit the risk of breakage.
  • Deck, hull and rails in PVC vacuum pressed sandwich: incomparable strength and incredible dynamism.
  • Deck: integral PVC/Fiberglass sandwich composed of a high-density PVC foam core and 2 layers of 4oz fiberglass and 1 layer of 6oz Biaxial fiberglass, fiberglass reinforcements on sensitive areas.
  • Hull: integral PVC/Fiberglass Sandwich composed of a high-density PVC foam core and 2 layers of 4oz fiberglass and 1 layer of 6oz Biaxial fiberglass, fiberglass reinforcements on the sensitive areas.
  • Specific Foil reinforcements: high-density PVC block housing the two US Rail Boxes. Two layers of carbon cover the boxes. Laminated PVC slats connect the reinforcement to the deck for maximum durability.
  • Rails: the PVC Sandwich structure completely covers the rails: increased structural strength, very good shock resistance (against knee or heel hits).
  • Hot Coat integrated Tinted Resin: nobility of the process, weight reduction and solidity of the finish.
  • Matt custom finish, hand-made, for weight reduction and better glide.

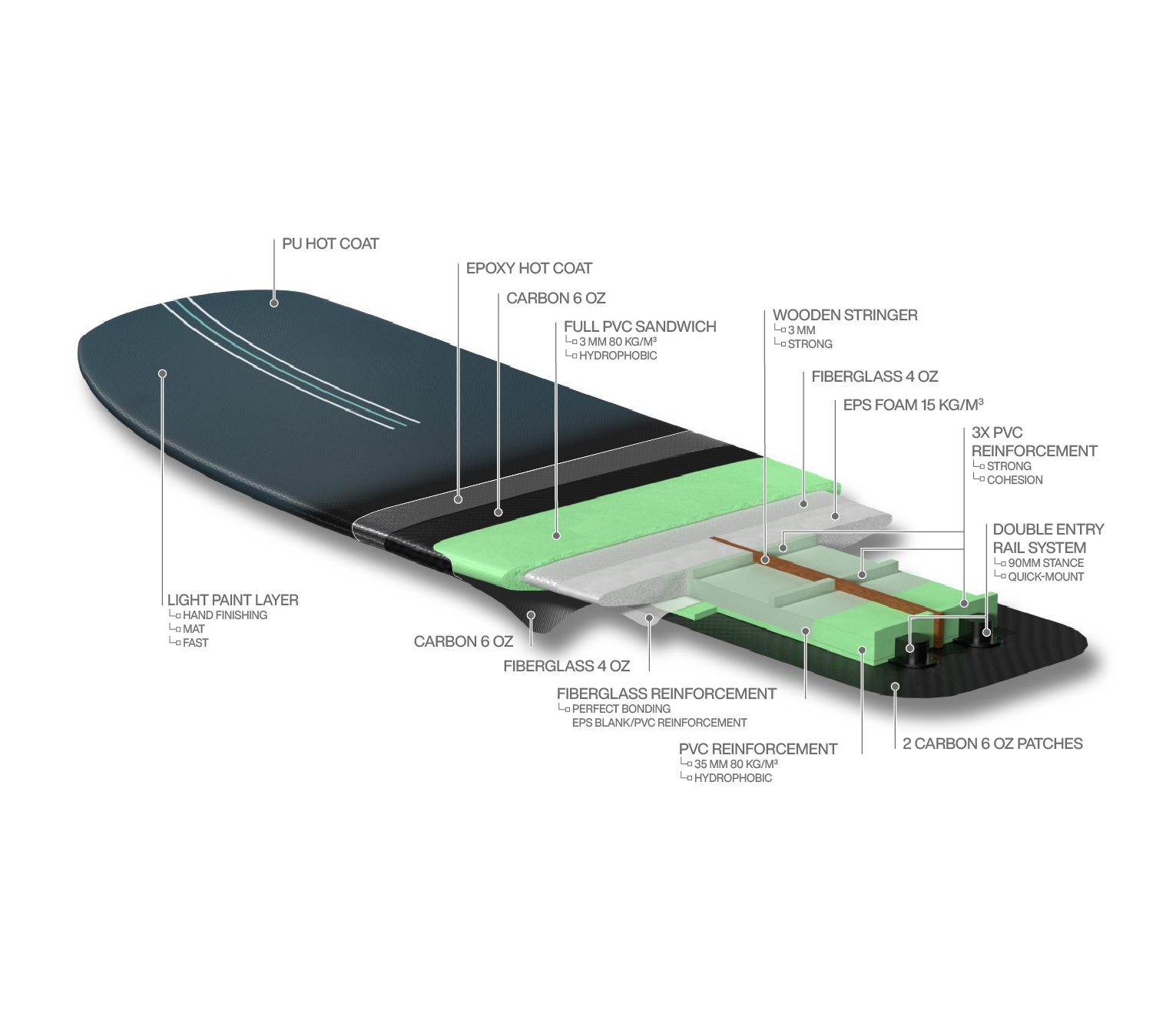

FSP PRO Technology


These boards are equipped with our innovative and high-end technology called FSP Pro. This full-carbon full sandwich PVC offers the best dynamism while preserving strength, at an incredible weight. It’s quite simply the ultimate in vacuum technology for customs, used as standard on our production models.

  • 3D shape on modeling software.
  • Preshape by numerical control for total reliability.
  • Shape control by traditional templates, finishing off the last mm 100% by hand.
  • Epoxy resin and EPS foam blank: solid and lightweight.
  • 3mm stringer to limit the risk of breakage.
  • Deck, hull and rails in PVC vacuum pressed sandwich: incomparable strength and incredible dynamism.
  • Deck: full PVC/Fiberglass and carbon sandwich composed of a high density PVC foam core and 1 layer of 4oz fiberglass and 1 layer of 6oz carbon fiber, fiberglass reinforcements in sensitive areas.
  • Hull: full PVC/Fiberglass and carbon sandwich composed of a high density PVC foam core and 1 layer of 6oz carbon fiber, fiberglass reinforcements on sensitive areas.
  • Specific foil reinforcements: the two US rails are fitted in a high density PVC block. Three layers of carbon cover these boxes. Laminated PVC slats connect the reinforcements to the deck for added durability.
  • Rails: the PVC sandwich structure completely covers the rails: increased structural strength, very good impact resistance.
  • Resin tinted hot coat : nobility of the process, weight saving and solidity of the finish.
  • Hand-made matt “custom finish” for weight saving and a better glide.
