GONG | Foil Allvator Carbon Mast HM 72 cm

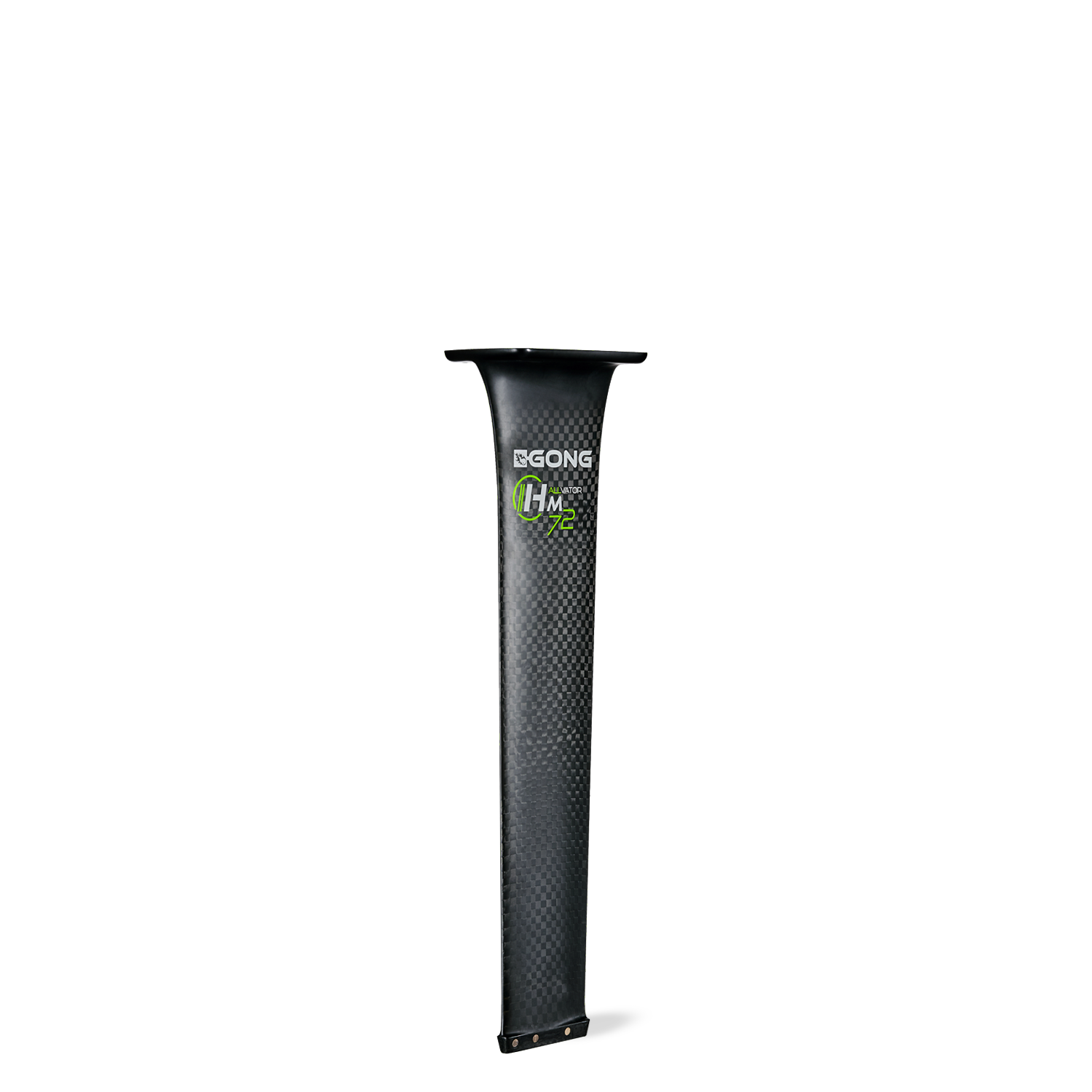

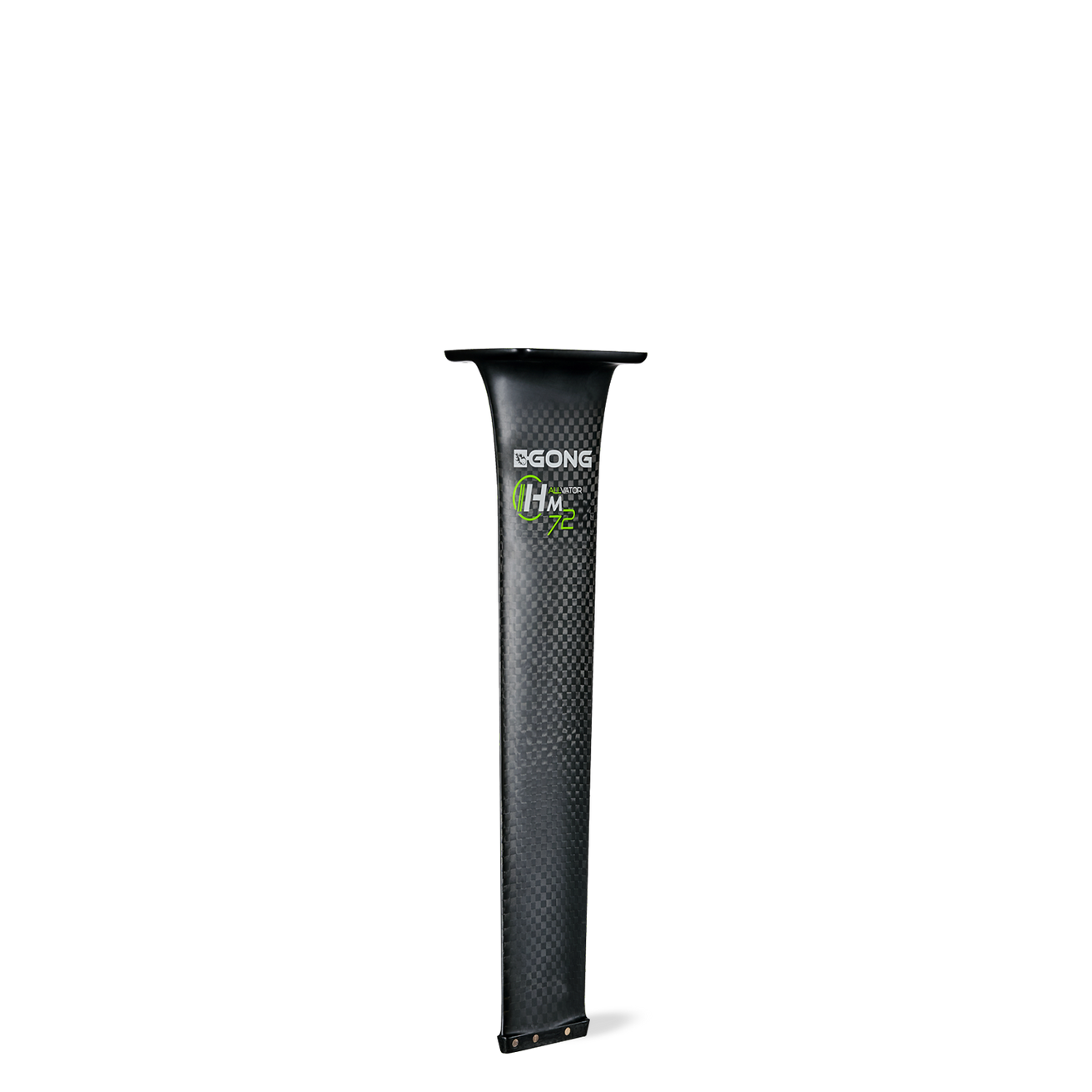

Foil Allvator Carbon Mast HM 72 cm

Name: GONG - Foil Allvator Carbon Mast HM 72 cm
Brand: GONG
SKU: GON3FCAR72HM
Price: 759.0 EUR
Availability: InStock
Rating: 5 (1 reviews)

Ultra rigid high modulus carbon mast for more performance with large wings.

See Description

759€

Taille 72 cm

72 cm

In action

Description

Program

High modulus carbon mast of absolute rigidity for large wings and ultimate pumping!

Description

A radical shape for absolute rigidity!

The 72 HM mast was drawn from a blank page with new profiles, dimensions, wing fillets … and a new technology inherited from our expertise on large front wings to create the most rigid mast possible.

Pumping with large front wings is probably the most stressful effort for a mast: the front wings are powerful, the movements intense and the expectations are high. So the slightest deformation is a loss of energy and therefore of performance. This is where this 72 HM mast shows all its potential: even with a 186 cm front wing you don’t feel the slightest torsion!

Note: The fuselage is sold separately from the HM mast.

Your benefits are clear:

A top level shape created by one of the leaders in the foiling world.
A design at the forefront of R&D and ahead of its time.
The incomparable stiffness of high modulus carbon and a stringer!
Better compromise weight/rigidity thanks to the high pressure molding in one pass.
No game possible thanks to conical assembly.
Solidity thanks to the aluminum or titanium v2 fuselages, tested on thousands of foils.
Significant weight gain with our foam filled mast.
The 12k carbon full option finish at a crazy price.
An incredible price that is only explained by our direct relationship with you.
Simple maintenance and easy repairs.

Rigid profile

To achieve such a result, all the geometry of the mast has been optimized in this perspective. Its upper profile is almost rectangular (although profiled) in order to keep the thickness on the entire chord. This geometry maximizes rigidity in flexion, but especially in torsion. Torsion is a horrible feeling when using a large front wing. This mast is the answer to this concern that harms the drive and causes strong loss of energy.

The lower profile of the mast is a light supercritical profile, which promotes water flows and therefore glide which remains a crucial point in pumping. However, this profile is bombed enough for its curvature to act like a beam that completely blocks flexion.

The wing fillets around the top plate were completely redesigned to distribute the efforts on their whole length. This geometry maximizes torsion rigidity. The efforts are distributed on almost 20 cm instead of 15 cm on the 70 HM mast. Carbon fibers transmit more energy to the board. The result is stunning!

We designed this mast so you can have a blast with beachstart or dockstart sessions. 72 cm is the best size for these programs: neither too long to start from the beach, nor too short to take off from a dock. In addition, this size is ideal for pumping the foil comfortably with the expected margins and dynamism.

Self-tightening conical fitting

The conical self-tightening fitting at the lower end of the mast allows the mast to be mounted without play in the aluminum or titanium V2 fuselage. The more you pump, the tighter it gets! And with its three screws, you are sure that nothing will move. The top plate is molded in one piece with the mast, which allows absolutely no play. The assembly guarantees you zero loss of energy when pumping and impeccable steering precision.

Pre-preg carbon layups

The high modulus carbon and prepreg carbon layup is a model of its kind. The 50 layers of the mast are distributed in 5 angles to guarantee incredible dynamism. The return to its initial shape after effort is 4 times faster than on a standard mast. And the use of high modulus carbon drastically reduces deformations. The prepreg is one of the keys to the performance of this mast because the resin is applied in the perfect dosage in the carbon fiber before it is placed in the mold by a robot. The precision of the dosage is absolute. No risk of delamination, bubbles, dryness, or excess weight.

Total precision! TORAY M40J high modulus carbon offers incredible stiffness. It is a high-end carbon that delivers high mechanical properties while remaining resistant. A carbon popular in aeronautics as well as for high-end sports equipment. Its mechanical characteristics such as its superior tensile strength and Young’s modulus make it possible to obtain exceptional performance on the water. This huge piece is produced in a mold weighing more than 400 kg, operated by large machinery to protect people. More than 4 hours are needed to set all the layers in the perfect order. Then comes the moment of closing the mould, always impressive in terms of strength and precision. Finally, it is inserted into the heating press to compress it to 120 tons and heat it at 155°. The result will be a mast of rare rigidity.

The huge advantage of high-end carbon is its stiffness. To the point that it is not useful to put as much material as with other materials. Thus we gain a significant weight, almost 20% compared to aluminum. And beyond the measured weight, the dynamism brings a feeling of liveliness and therefore of incredible lightness.

A damaged insert: you can replace it in a few seconds and for a few euros. Easy. A shock in the rocks: you repair your mast as you would repair your board.

In summary, this carbon mast combines finesse, lightness and extreme rigidity to shred on your spot. In summary, the 72 HM mast is the best in terms of rigidity. Its shape designed to withstand very strong constraints without the slightest deformation clearly makes it a pumping machine that easily takes on large wings. This is the discipline that requires the foils the most, the front wings are wide and the support is clear, this is where you will discover the full potential of this mast!

Treat yourself with a beautiful and super efficient carbon equipment piece

Carbon HM Mast Technology

High Module Carbon offers unparalleled rigidity, representing the pinnacle of performance in our most advanced wings and masts, which face the most demanding structural constraints.

By combining High Module with Intermediate Module, we offer the best performance at the best price.

The products have no flex, the fibers are oriented along multiple axes to lock in bending and torsion, ensuring maximum responsiveness.

Thanks to pre-impregnated fibers, we can guarantee optimal resin usage, providing perfect cohesion at the lightest possible weight.

Each layer of carbon is carefully hand-assembled around a high-density hydrophobic foam core, in a steel mold. A central stiffener is integrated to increase rigidity without compromising on lightness.

The mold is then subjected to high pressure and heated to 150°C to solidify the carbon. The foam core, seeking to expand under the heat, ensures even compression between the carbon layers, ensuring a strong and durable structure.

Durability and repairability are at the heart of our development philosophy. Our foils are tested and proven by dozens of team riders, hundreds of employees, and thousands of customers worldwide. Even in case of damage, our products can be repaired multiple times, ensuring exceptional longevity.

Technical sheet

Foil Allvator Carbon Mast HM 72 cm 72 cm

Download the user guide

Buying guide

For whom?

Simply those who want an ultra rigid mast for large wings.

It is also the perfect ally of a big rider in surf or SUP foiling looking for maximum rigidity.

This is a mast for the most demanding users, the fine tuners that take care of their gear, because it is the best.

This mast is intended for experienced riders. We therefore invite you to take great care of it and not equip yourself with it if you are just getting started.

What is it for?

Its shape, designed to absorb very strong constraints without the slightest deformation, makes it perfect for pumping with large wings. It is the most demanding discipline on the foils: the front wings are wide and the efforts intense, this is where you will experience the full potential of this mast!

It is also perfect in SUP and surf foiling in small conditions for example with a large front wing. These pumping qualities make your flight back to the peak almost easy. You can catch a swell line far in the distance and enjoy long rides back to the breaking zone.

Which HM mast size?

The 72cm:

For dock starts/beach starts: it is perfect for controlling and transmitting power to a large foil.
In surf foiling / SUP foiling: paddling is not an issue with this 72 cm mast, while its qualities in pumping will allow you to take advantage of the smallest conditions or the largest wings.
In wing foiling, the shape is really not suitable because it is very short for this use.

Which quiver?

This mast is suitable for all wings but we recommend using it with high performance wings to make the most of it.

It is on large front wings that it will prove to be decisive.

Foil positioning?

For GONG foils, place the top plate at the rear third of the US rails in surfing, SUP and kite, and in the middle of the US rails in wing foiling.
The more you move it forward, the more it makes the board pitch up. The further you move it backwards, the more the nose of the board dives.
Be careful not to move it too far forward. We often tend to forget to use the back foot, especially when we have a kite foil background. However, moving the foil back a little forces you to put more weight on the back foot and gives a more harmonious attitude and reduces effort.

Equipments

Screw kit :

4 M6x30 torx screws with truss heads for the board.
4 washers.
4 square nuts for US-box.
3 M6x30 torx screws with countersunk heads for the fuselage.
1 torx key T30
